 Uses
|
| .. |
ShipCAM's
plate expansion routine has shown its power and
reliability in successfully expanding more than
50,000 plates world-wide. Powerful plate expansion
tool provides not only the expanded plate including
all markings, but also forming templates, dimensional
control drawings with deformations between frames,
and colored strain maps. Shell Expansions for classification
drawings, Pin Jigs drawings, and Inverse Profile
Bending drawings complete this powerful lofting
tool
|
|
|
| .. |
ShipCAM--光顺和放样
一个成功的项目事先需要的就是一个满足生产质量要求的曲面模型。在ShipCAD里面您可以从几乎任何船体设计系统输入曲面模型或者是利用自带的光顺系统来按照给出的型值表进行拟和。Shipbuilding的曲面优化功能可以很容易地生成一个完整的产品曲面模型所需的复杂形状。 |
|
| |
| ...
Brief |
| .. |
Full

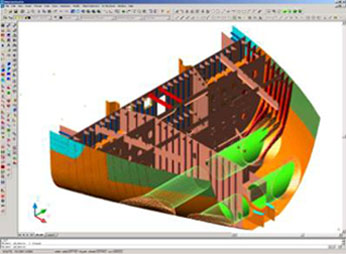

3D hull lofting and plate forming tools on a PC
Standalone or as Part of ShipConstructor
LinesFairing - fair hull surfaces to match towing
tank performance
LoftSpace - build a 3D model, or import from other
software.
PlateExpand - expand any type of plate & stiffeners
StringerCutouts - insert hundreds of cutouts accurately
in seconds.
ShellExpand - create drawings for plate layout and
class society.
InverseBend - accurate inverse bending curves for
frame/ stringers.
PinJig - produce pin jig for accurate construction
blocks assembly
|
|
| |
|
